Outdoor cabinets with optional climate control Guardian M IPcom Company

COD: 6169fde9141e Categoria:

Descrizione

Outdoor cabinets with optional climate control Guardian M

Product Lines

1. Guardian M OD MINI

2. Guardian M OD STANDART

3. Guardian M OD OPTIM

4. Guardian M OD PLUS

5. Guardian M OD MEGA

Guardian M series are the optimal solution for building networks when it is necessary to install equipment outside.

The Guardian M series was designed for mounting 19 ”equipment, with a static load up to 1000 kg.

The climatic cabinet can be operated at temperatures from -50°C to +50°C and relative air humidity up to 80% (at temperature of +25°C dew free).

Height24U – 42U
Width800 mm
Depth825 mm
ConstructionSide panels and doors can be easily disassembled
Inner plateGalvanized steel 0.8 mm
InsulationBasalt mineral wool 50 mm
Outer plateSteel / Galvanized steel 1.5-2.0 mm
Door opening angle120 degrees
Cable glandsPG/MG
Degree of protectionIP54/IP55
Climate systemAir conditioner / Free cooling

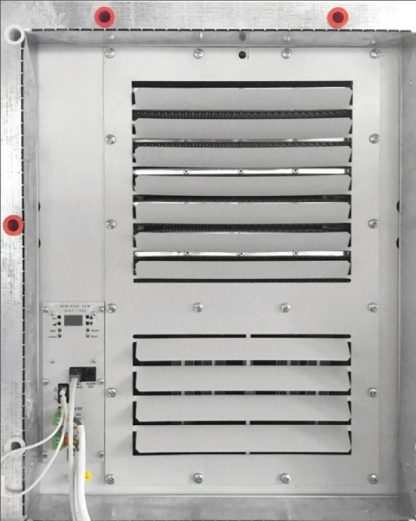

Guardian M сlimate system

Climate control based on air conditioner

Heat recovery1,5 – 2,5 kW
Compressor, V220VAC
Free cooling, V220VAC / 48VDC (optional)
Heater, V220VAC
Controldigital, speed control
Temperature sensors8 pcs.
Heating power1,000 W

Free cooling system, closed type (optional)

Heat removal capacity80 W / K
Free cooling, V48VDC (optional – 220VAC)
Heater, V220VAC
Controldigital, speed control
Temperature sensors4 pcs.
Heating power1,000 W (220V)

Ventilation system (optional)

Max heat removal when dT = 5°C750- 2,250 W
Voltage48VDC
Heater, V220VAC
Controldigital, speed control
Number of control channels1-3
Temperature sensors4 pcs
Heating power1,000 W (220V)

Peltier thermoelectric air conditioner (optional)

Power300 W
Voltage48VDC
Controldigital, speed control
Temperature sensors2 pcs.
Heating in the reverse modeoption

Size table

Basic monitoring v 1.1

Monitoring system battery

Outdoor cabinets series SHKK and SHKK 2.0



Weatherproof climatic cabinets of SHKK and SHKK 2.0 series are the optimal solution for building networks when it is necessary to install equipment outside. The SHKK series was designed for mounting 19” equipment with a static load up to 1000 kg.

The climatic cabinet can be operated at temperatures from -40°C to + 45°C and relative air humidity up to 90% (at temperature of + 25°C, dew free).

Technical description

Height24U, 33U, 42U
Width715mm
Depth860 mm
ConstructionSide panels and doors can be easily disassembled
Inner plateGalvanized Steel S=0,8-1 mm
Mounting rackSteel S=1,8 mm
Adjustment step of mounting racks25 mm
Door opening angle120 degrees
Cable glandsPG 13,5*2 pc, PG 21*7 pc PG 29*3 pc
Degree of protectionIP54
Climate systemExhaust fans

Monitoring of Outdoor cabinet SHKK



Standard configuration

– Ethernet module
– datatransmission in format SNMP v2c
– Built-in web interface
– Built-in power supply 220V
– RS232 port for local configuration
– Connection of up to 6 dry contact sensors
– Survey of 2 temperature sensors readings (sensors are included in the delivery set)
– Heater control
– Exhaust fan control 220V
– Remote configuration capability
– Remote firmware update

Optional features

– Survey of electricity metering device via the interface RS485
– Disconnection of the total load via an external contactor
– Survey of 2 temperature sensors readings (sensors are included in the delivery set)
– Measuring the input voltage in 220V network (external adapter)
– Built-in GPRS-modem
– External antenna in anti-vandal design
